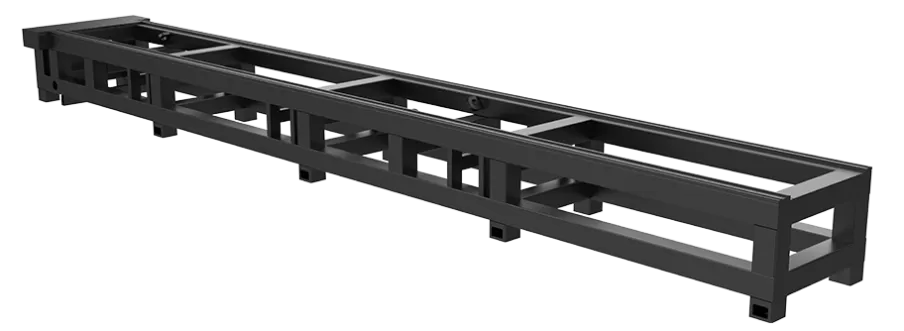

Bed structure
The high-strength tube machine tool body structure and precision manufacturing technology ensure the dynamic performance, operating accuracy and stability of the machine tool during work.

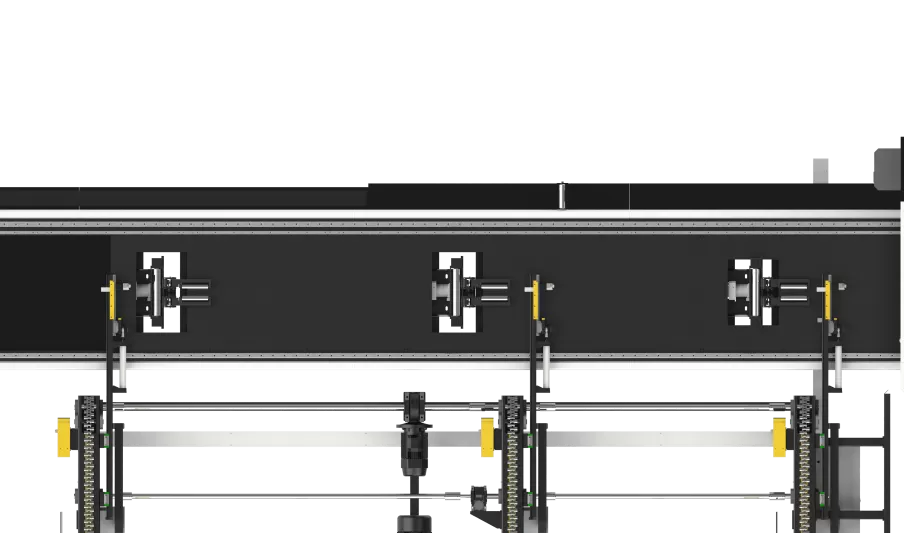

Follow-up device
For some non-standard shaped or curved pipes, the follow-up support can adaptively fit the pipe surface and provide uniform support force, ensuring that the pipe is always in the ideal cutting position during the cutting process, which helps to improve cutting accuracy.
Variable diameter wheel support
Suitable for processing round and square tubes, cost-effective.Nylon material has good shock absorption performance and can absorb the vibration generated during the cutting process, making the cutting process more stable. This not only helps to improve the cutting quality, reduce the roughness and verticality error of the cutting surface, but also reduces the loss of other parts of the pipe cutting machine due to vibration and prolongs the service life of the pipe cutting machine.
Technical Parameter
| Machine model | 6024T2 | 6036T2 | 12036T2 |
| Round tube diameter range | 10-230mm | 25-350mm | 25-350mm |
| Square tube side length range | 10-230mm | 25-350mm | 25-350mm |
| Maximum length of pipe | 6300mm | 6300mm | 12300mm |
| Maximum weight of a single pipe | 300Kg | 660kg | 1300kg |
| Chuck maximum speed | 100r/min | 75r/min | 75r/min |
| Max acceleration | 1.5G | 1.5G | 1.0G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-6000W | 1500W-6000W | 1500W-6000W |
Product Features
1. Segmented servo support, three-sided rollers, support according to the running track of the pipe without damaging the pipe.
2. Double card movement, the front chuck can move forward to avoid the problem of sagging of the pipe supported by the rear card and ensure the stability of cutting.
3. Humanized design, highly integrated electrical cabinet and laser, small footprint, reasonable matching factory layout.
4. Self-selection, can choose the configuration according to actual needs, high cost performance.
5. There are many types of cutting pipes, suitable for a variety of working conditions, and complex graphics can be easily resolved.
6. The bed body is welded with mortise and tenon joints, the structure is more stable, the cutting pipe is not deformed, and the cutting accuracy of the equipment is guaranteed.
7. It is widely used in military industry, aerospace, textile machinery, medical equipment, fitness equipment, auto parts, petrochemical machinery, agricultural machinery, production lines, other civil machinery and other fields.
