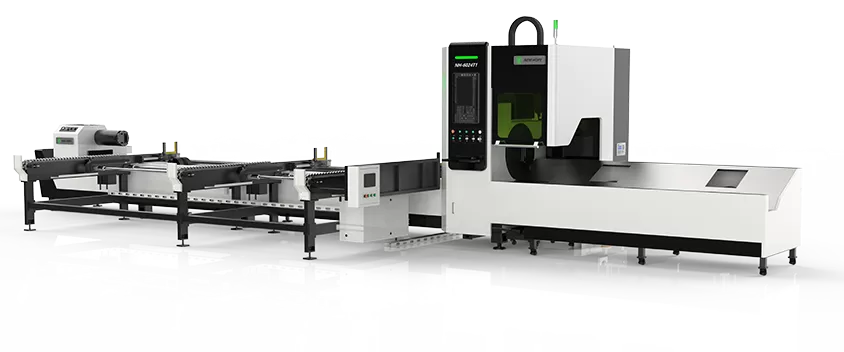

NH-6024T1B
Horizontal pipe cutting machine
The bed is welded with mortise and tenon joints
Bed structure
The high-strength tube machine tool body structure and precision manufacturing technology ensure the dynamic performance, operating accuracy and stability of the machine tool during work.

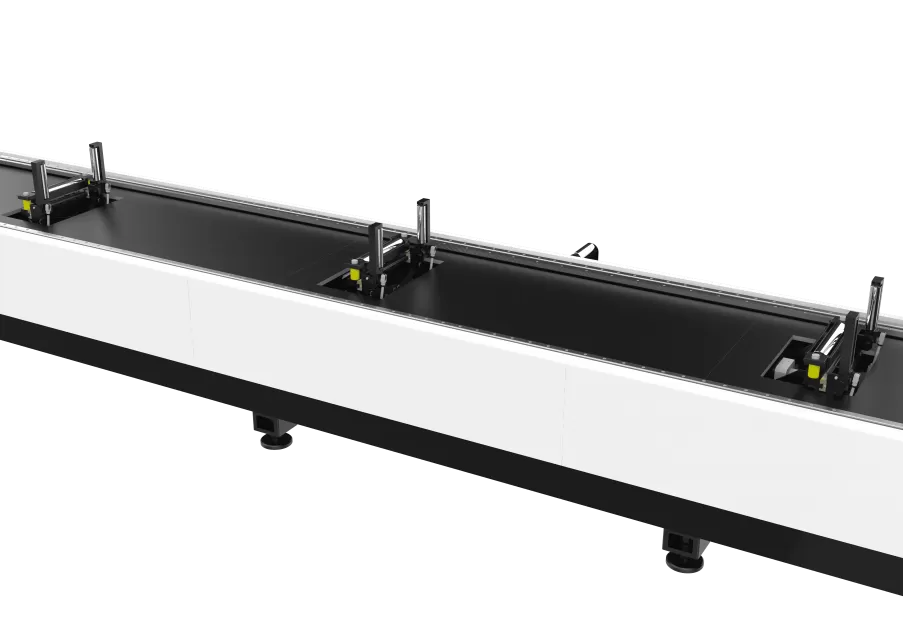

Follow-up device
For some non-standard shaped or curved pipes, the follow-up support can adaptively fit the pipe surface and provide uniform support force, ensuring that the pipe is always in the ideal cutting position during the cutting process, which helps to improve cutting accuracy.
Variable diameter wheel support
Suitable for processing round and square tubes, cost-effective.Nylon material has good shock absorption performance and can absorb the vibration generated during the cutting process, making the cutting process more stable. This not only helps to improve the cutting quality, reduce the roughness and verticality error of the cutting surface, but also reduces the loss of other parts of the pipe cutting machine due to vibration and prolongs the service life of the pipe cutting machine.
Technical Parameter
| Machine model | 6012T1 | 6024T1 | 6036T1 |
| Round tube diameter range | 10-120mm | 10-230mm | 25-350mm |
| Square tube side length range | 10-120mm | 10-230mm | 25-350mm |
| Maximum length of pipe | 6300mm | 6300mm | 6300mm |
| Maximum weight of a single pipe | 100Kg | 300Kg | 660kg |
| Chuck maximum speed | 200r/min | 100r/min | 75r/min |
| Max acceleration | 1.5G | 1.5G | 1.5G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-6000W | 1500W-6000W | 1500W-6000W |
Product Features
1. The bed is welded with mortise and tenon joints, the structure is more stable, the cutting pipe does not deform, and the cutting accuracy of the equipment is guaranteed.
2. Extremely simple style. The equipment is small and exquisite, the whole machine occupies a small area, and is not limited by the site.
3. The square hole design has a wide range of pipe applications, and the eight-cylinder support has a strong support force and does not fall off the pipe.

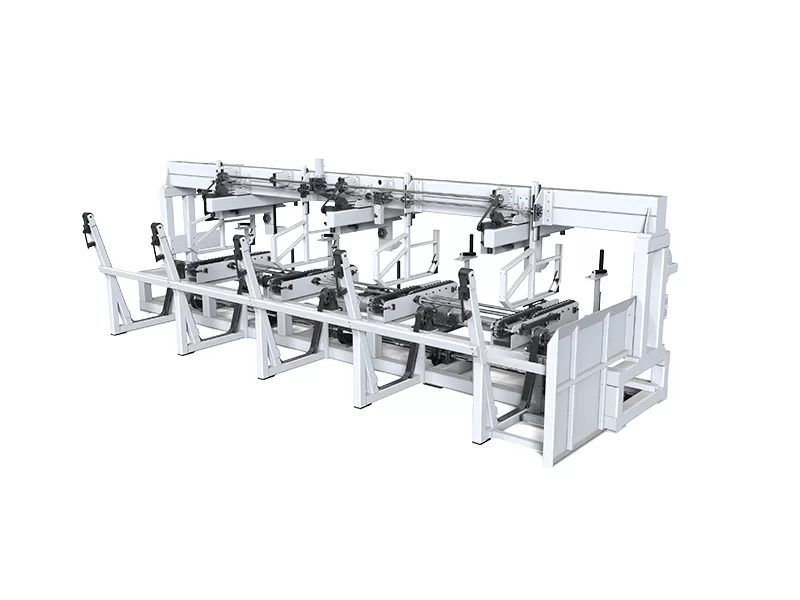

4. Equipped with full/semi-automatic loading, compact design, high cost performance, improved production efficiency, and reduced labor costs.

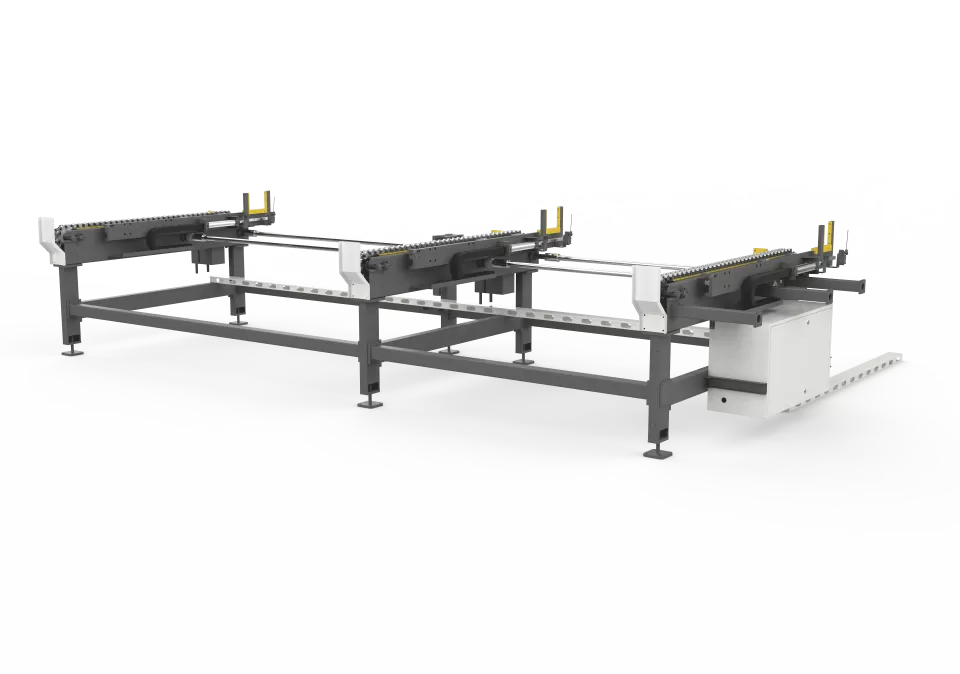

5. Automated material receiving table design, intelligent production, and improved pipe utilization.
6. Integrated design, laser, electric cabinet and fuselage synthesis.
7. Widely used in military industry, aerospace, textile machinery, medical equipment, fitness equipment, auto parts, petrochemical machinery, agricultural machinery, production lines, other civil machinery and other fields.
Call to Action
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
