Bed structure
The high-strength tube machine tool body structure and precision manufacturing technology ensure the dynamic performance, operating accuracy and stability of the machine tool during work.

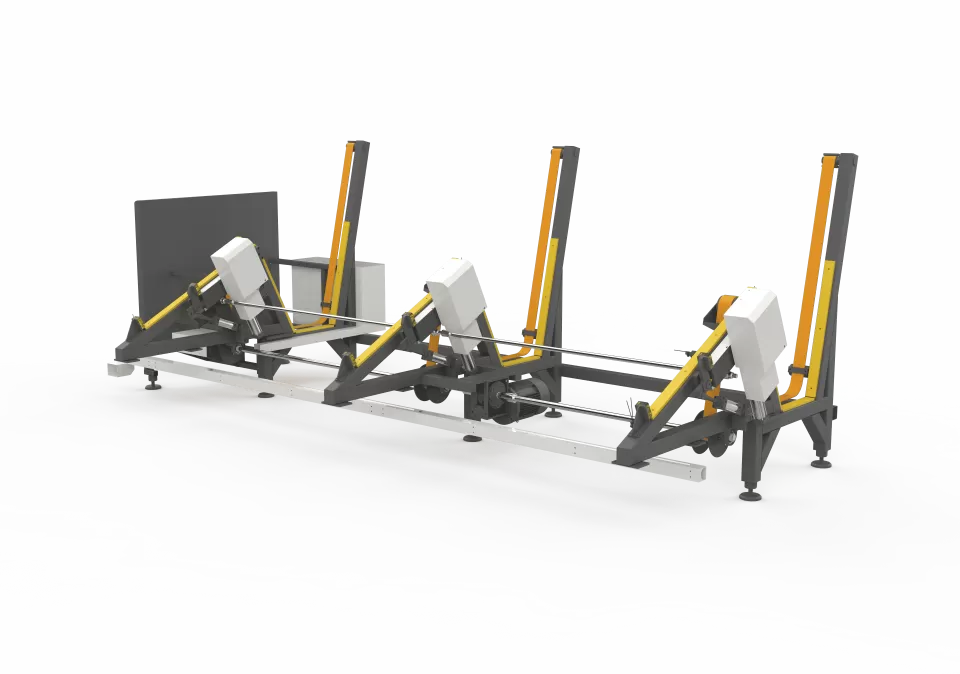

Follow-up device
For some non-standard shaped or curved pipes, the follow-up support can adaptively fit the pipe surface and provide uniform support force, ensuring that the pipe is always in the ideal cutting position during the cutting process, which helps to improve cutting accuracy.
Variable diameter wheel support
Suitable for processing round and square tubes, cost-effective.Nylon material has good shock absorption performance and can absorb the vibration generated during the cutting process, making the cutting process more stable. This not only helps to improve the cutting quality, reduce the roughness and verticality error of the cutting surface, but also reduces the loss of other parts of the pipe cutting machine due to vibration and prolongs the service life of the pipe cutting machine.
Technical Parameter
| Machine model | 6016G2 | 6024G2 | 12036G2 |
| Round tube diameter range | 10-160mm | 10-230mm | 25-350mm |
| Square tube side length range | 10-160mm | 10-230mm | 25-350mm |
| Maximum length of pipe | 6300mm | 6300mm | 12300mm |
| Maximum weight of a single pipe | 140kg | 300Kg | 1300kg |
| Chuck maximum speed | 140r/min | 100r/min | 75r/min |
| Max acceleration | 1.5G | 1.5G | 1.0G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-6000W | 1500W-6000W | 1500W-12000W |
Product Features
1. Segmented servo support, three-sided rollers, support according to the running trajectory of the pipe, without damaging the pipe.
2. Side-mounted chuck structure, supporting loading and unloading structure, saving labor costs and improving production efficiency.
3. Integrated design, laser, electric cabinet and fuselage synthesis, small equipment size, easy to place.
4. The side-mounted chuck has a large load capacity and excellent dynamic performance.
5. Equipped with an intelligent bus system, it has fast response speed, simple and easy operation, accurate weld identification, and improves the aesthetics of the cut workpiece.
6. It is widely used in military industry, aerospace, textile machinery, medical equipment, fitness equipment, auto parts, petrochemical machinery, agricultural machinery, production lines, other civil machinery and other fields.
