NH-6024TC

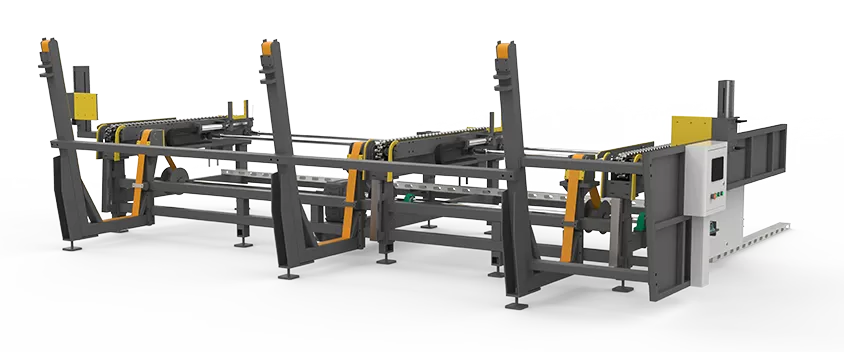

Horizontal automatic laser pipe cutting machine feeding device
Fully automatic loading mode, fast loading speed
Technical Parameter
| Material | Stainless steel pipe, carbon steel pipe, aluminum pipe, etc. | ||
| Applicable pipe specifications | Round tube diameter | φ20mm-φ160mm | |
| Square tube diameter | 20mm-160mm | ||
| Rectangular tube size | The maximum aspect ratio is 1.5:1, and the cross-sectional side length is 20mm-200mm | ||
| Pipe length | 3m, 6m, 9m | ||
| Loading time | Round tube | First loading: 70S | Cycle feeding: 30S |
| Square tube, rectangular tube | First loading: 70S | Cycle feeding: 30S | |
| Silo load bearing weight | 1.5T | ||
| Maximum weight of a single piece | 100Kg | ||
Product Features
1. Fully automatic loading mode, fast loading speed, one person can watch over multiple devices, reducing labor costs.
2. The whole process is driven by cylinders, which can be reused, efficient, environmentally friendly and pollution-free.
3. Module split design, easy to disassemble and assemble, easy to transport, and can be modularly expanded.
4. The servo manipulator loads the material, and the feeding position is accurate and reliable;
