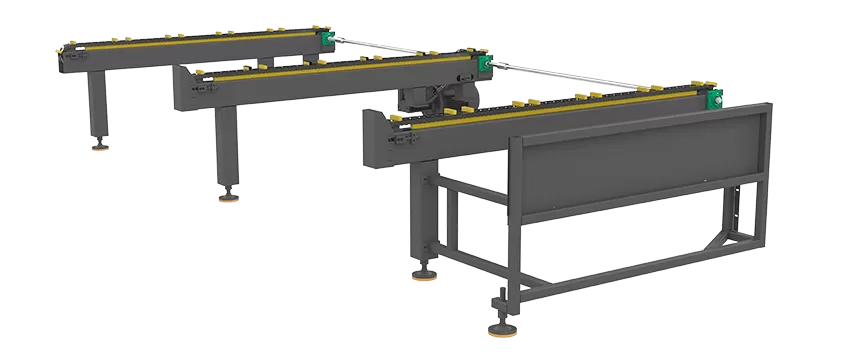

NH-6024GA
Semi-automatic Side-mounted laser pipe cutting machine feeding device
With material storage, it can load whole bundles
Technical Parameter
| Material | Stainless steel pipe, carbon steel pipe, aluminum pipe, etc. | ||
| Applicable pipe specifications | Round tube diameter | φ20mm-φ160mm | |
| Square tube diameter | 20mm-160mm | ||
| Rectangular tube size | The maximum aspect ratio is 1.5:1, and the cross-sectional side length is 20mm-200mm | ||
| Pipe length | 3m, 6m, 9m | ||
| Loading time | Round tube | First loading: 70S | Cycle feeding: 30S |
| Square tube, rectangular tube | First loading: 70S | Cycle feeding: 30S | |
| Silo load bearing weight | 1.5T | ||
| Maximum weight of a single piece | 100Kg | ||
Product Features
1. With material storage, it can load whole bundles, intelligent material separation and loading, reduce labor costs, and realize large-scale processing;
2. No need for manual assistance, more efficient;
3. Servo manipulator loading, accurate and reliable feeding position;
4. One-button start, seamless connection, one person can take care of multiple devices;
Call to Action
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
