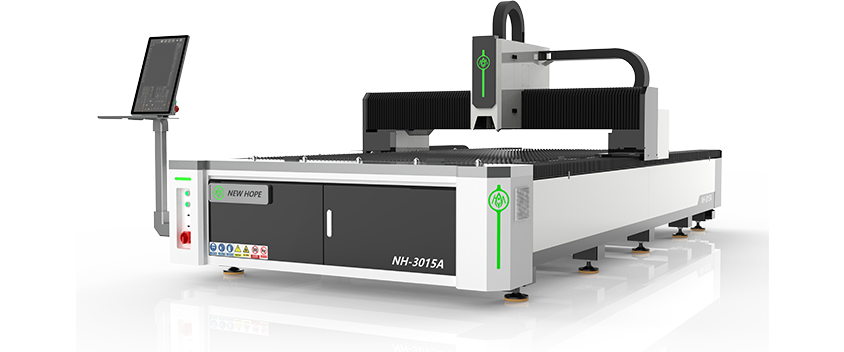

NH-3015A
Single platform plate fiber laser cutting machine

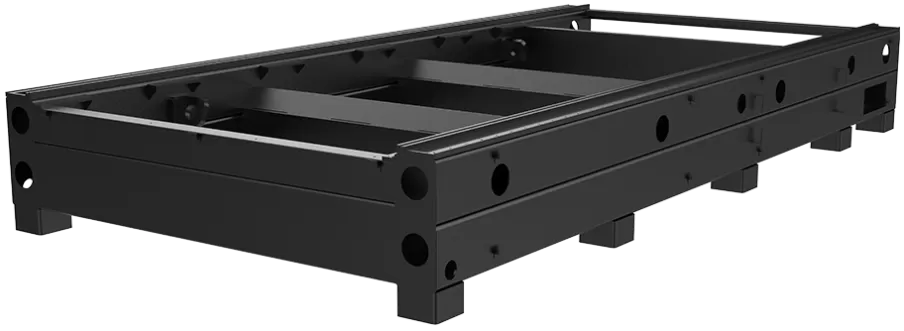

The bed is welded with mortise and tenon joints
Advantages of bed structure
The steel pipe welding foundation has high strength, the structure is more stable, and when cutting thick plates will not be deformed, ensuring the cutting accuracy of the equipment.
Advantages of machine crossbeam advantages
The high-strength aviation aluminum crossbeam and precision manufacturing process ensure the dynamic performance, accuracy, and stability of the machine during operation.
Advantages of modular processing table
The load capacity of each independent module does not affect each other, making disassembly and maintenance more convenient and faster.
Follow-up dust removal device
Intelligent follow-up dust removal system, the most suitable pipeline system for smoke and dust flow, efficient, environmentally friendly and pollution-free.
Technical Parameter
| Machine model | 3015A | 4020A | 6025A |
| Work area | 3048mm*1524mm | 4064mm*2032mm | 6096mm*2540mm |
| Max speed | 100m/min | 100m/min | 100m/min |
| Acceleration | 1.5G | 1.5G | 1.5G |
| Z-axis travel | 120mm | 120mm | 120mm |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Table load bearing weight | 1000kg | 1600kg | 3000kg |
| Adaptation power | 1500W-12000W | 1500W-12000W | 1500W-12000W |
Product Features
1. The bed is welded with mortise and tenon joints, the structure is more stable, the thick plate is not deformed when cutting, and the cutting accuracy of the equipment is guaranteed.
2. The workbench is modularly designed, each module is independently loaded and does not affect each other, and disassembly and maintenance are more convenient and quick.
3. Aviation-grade aluminum beams, high strength, high corrosion resistance, long life, long-term use stable without deformation.
4. Intelligent follow-up dust removal system, the most suitable pipeline system for smoke flow, efficient, environmentally friendly and pollution-free.
5. Bus motor control, better dynamic performance, suitable for a variety of processing scenarios.
6. Intelligent control system, compatible with various types of drawings, air movement obstacle avoidance, flying cutting, traceless micro-connection and other functions.
7. Widely used in military industry, aerospace, textile machinery, medical equipment, fitness equipment, auto parts, petrochemical machinery, agricultural machinery, production lines, other civil machinery and other fields.
Call to Action
FAQ
1.What's your warranty policy?
Answer:
The machine comes with a 2-3 years warranty for different laser sources, weprovide whole life free service for our machine and customers only need to payfor necessary parts&express costs for Out-of-Warranty Period.
2.How about your oversea service? What can I do if there is someproblem with my machine?
Answer:
Free training and technical support are always available for all customers Installation on-site or 7X24 online installation quidance is also provided.
3.How can I choose the most suitable machine?
Answer:
Please let us know the materials you want to proceed, with or what job you needto do with the machine, our sales will recommend machines with suitable configurations and solutions for all your production needs.
4.Do you offer OEM&ODM or customized service?
Answer:
OEM or ODM is welcomed. New Hope provide all kinds of solutions for automation, laser cutting/welding/cleaning, customized machines, and service for our esteemed customer. Our technology team together with our cooperated scientific institution&colleges and universities, provide our clients with more efficient, stable and cost-saving solutions.
5.Can we sell your machine in our country as a local agent?
Answer:
Yes, we will support our agents with training, installation, after-sales, and technical support service to ensure the well-use of each machine on the end-user's site.
